QTC Advanced Traffic Controller Introduction

QTC has been involved with the Roads and Traffic Authority of New South Wales, Australia in the development of the new Traffic Controller Specification TSC/4 since its inception. This specification establishes the requirements for equipment capable of supporting in the SCATS2 initiative. During this specification development QTC has also been developing the QTC Advanced Traffic Controller, designed to comply with the specification and incorporating up to date technologies and methods.

The Controller provides a fully scalable architecture allowing system configurations of up to 32 signal groups and 32 vehicle detectors to be deployed.

It is fully compliant with the current SCATS technology and has been specifically designed to provide the features required of the upcoming SCATS2 technology including the compatibility of LED traffic signals.

The communications sub-system is capable of many modes of operation, from the existing 300 baud modem links, through direct RS232 and fully automated dial-up to full network connectivity. The QTC Advanced Traffic Controller has been designed in a highly modular fashion to allow for future growth in terms of both infrastructure and technology. The flexibility of the design ensures that infrastructure expenditure is protected well into the future.

QTC Advanced Traffic Controller – The NEW Generation Traffic Controller

  • Latest in electronic technology
    • 32bit bus architecture
    • CardBus standard interfaces
    • Up to V34 communication capability
    • HDLC communication protocol capability
  • Latest in manufacturing technology
    • Surface mount
  • Latest in traffic technology
    • Traff-20 & SCATS ver. 6.4 or latest version

Communication interfaces
  • SCATS channel:
    • Internal Modem (V.34) - Connected via Line Isolation Unit (LIU) BAUD rate selectable via HHT
    • Commercial external Auto-answer Modem.
  • SCATS protocol ORIGINAL / HDLC – user selectable via HHT
  • HHT interface RS232 @ 9600bps
  • Scats Terminal interface RS232 @ 9600bps BAUD rate selectable via HHT
  • High Speed External Detection System Interface RS422

QTC Advanced Traffic Controller – The Controller for System Integrators
  • SCATS compliant
  • SCATS 2 ready
  • Can be integrated with variety of other systems
  • VMS and VSS interface

QTC Advanced Traffic Controller – The Controller for Traffic Engineers

  • Standard personality development software
  • Scalable architecture (up to 32 groups)
  • Integrated loop detectors (up to 32 channels)
  • Multiple standard vehicle actuated operating modes
  • Fully integrated in to the network
  • Time coordinated with other controllers in the region
  • Standalone
  • Flashing yellow

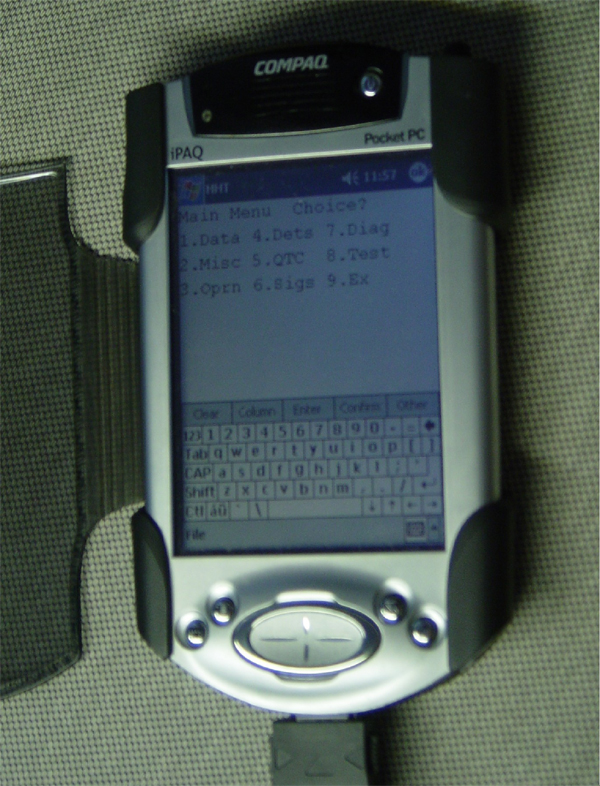

  • Menu based Hand Held Terminal


HHT Command

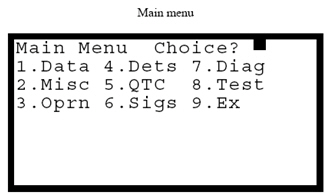

There are no keyboard commands or special codes to remember. The commands are structured into a menu system from which the user makes a selection by entry of numeric keys. In most cases entry of two keys is sufficient to select the desired command.


Controller Personality

Configuration Data (Personality Data) for controller will be prepared on a PC-based Controller Configuration Equipment. All Personality data will be stored in the Personality Flash EEPROM (Electrically Erasable Programmable Read-Only Memory). A control program will be provided in the Controller Configurator for loading the personality data to the EEPROM. No separate memory programmer or eraser will be required.

The Configurator simplifies the process of generating Configuration data and the loading of the data into EEPROMs. The function can be performed by non-technical staff.

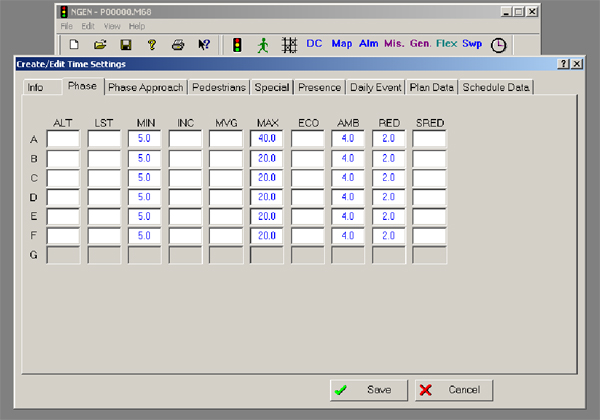

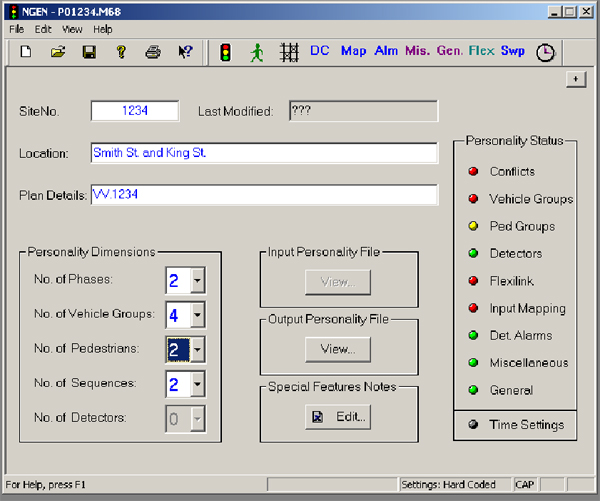

NGEN a new generation of SCATS controller configuration software, a Windows GUI type software package can be provided for the easy generation of configuration data.



As a safety measure, data in the Personality Flash EEPROM must correspond to the hardware programmed intersection number and revision level in the Site Identification Encoder in the controller housing for the controller to start operation when mains power is applied.

QTC Advanced Traffic Controller – The Controller for Field Technicians
  • Modular design

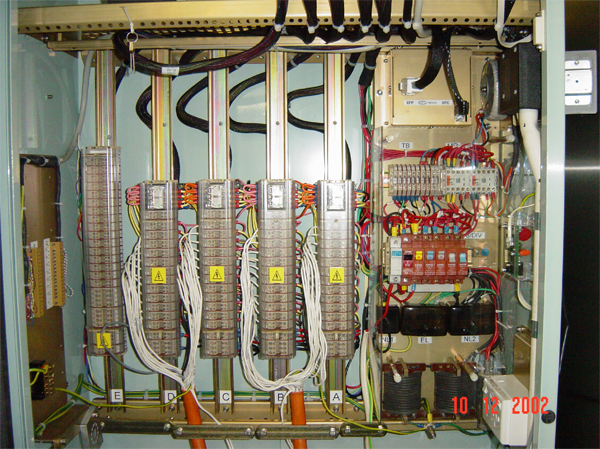

  • Easily accessible switchboard
  • Integrated test modes
  • Error types reported in simple text

QTC Advanced Traffic Controller – The Controller for Field Technicians

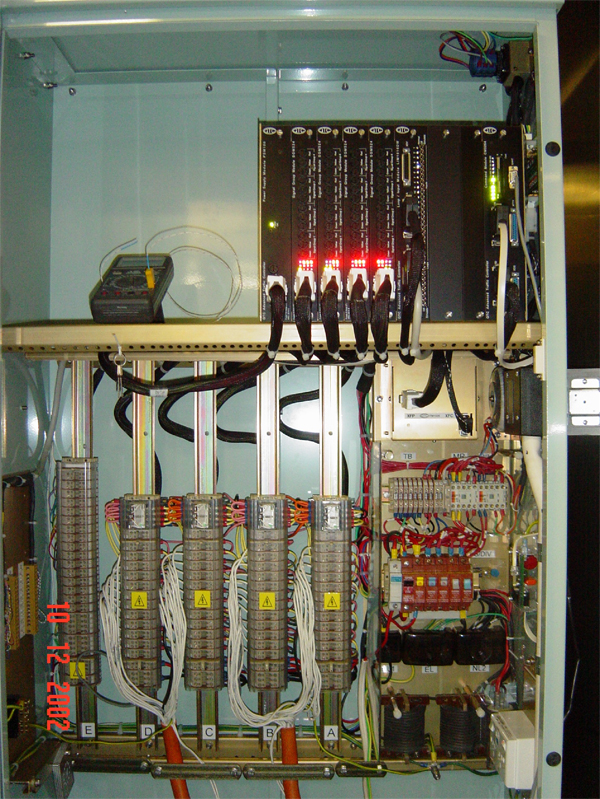

  • Industry standard logic rack – Interchangeable for TSC/4 compliant controllers
  • Stock control – Ability to interrogate serial number of every sub system without interrupting traffic
  • Remote reset of locked detectors

QTC Advanced Traffic Controller – The Controller for Everybody
  • TSC/4 Traffic Signal Controller Specification of RTA (NSW) Australia
  • AS4251.1 (CISPR22 Class B)
  • AS4252.1 (EMC)
  • AS3260 (Electrical Safety)
  • A-tick
  • Environmental protection to IP45
