Wavetronix Smartsensor HD

QTC is the distributor of Wavetronix LLC in Hong Kong. Wavetronix designs and manufacturers products for the ITS and traffc management industries. Its products are divided into three product categories: the SmartSensor™ line of non-intrusive radar traffc detection devices, which uses patented and exclusive technologies to detect traffc and generate consistently accurate data; the Click!™ power and communi-cation modules, which make the connections needed to keep data flowing; and the Command line of data collection and management appliances, which help users make sense of the data they’ve collected and provide important interfaces between the data and end-use applications.

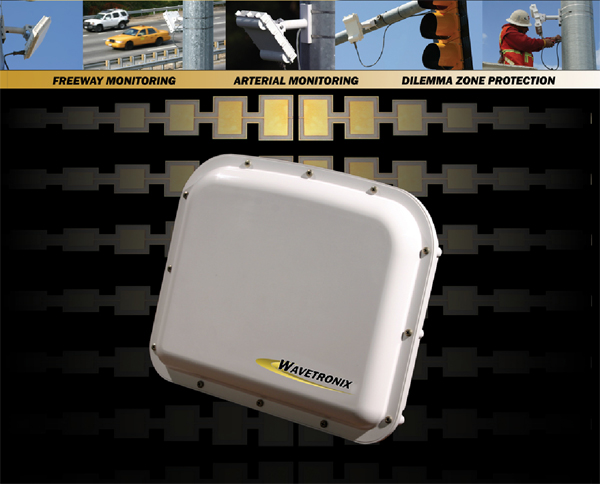

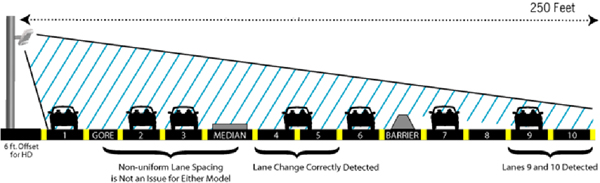

The Wavetronix SmartSensor HD uses the latest technology to collect consistently accurate traffic data in high definition. Patented Digital Wave Radar II™ measures traffic volume, individual vehicle speed, average speed, 85th percentile speed, average headway, average gap, lane occupancy, vehicle classification and presence. Operating at five times the bandwidth, SmartSensor HD has five times the resolution of the original SmartSensor, a detection range of 250 feet and the ability to detect up to 10 lanes of traffic simultaneously.

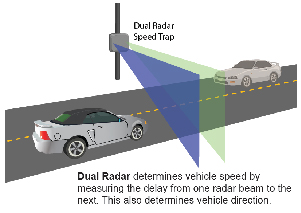

SmartSensor HD’s unique Dual Radar design is incredibly accurate, providing individual vehicle speeds to within four miles per hour as well as more precise vehicle classifications. Digital Wave Radar II reduces “spillover”; works over barriers, guardrails, medians and gores; and accurately detects partially occluded vehicles. Armed with high definition radar, SmartSensor HD sees all vehicles in its field of view, and not just those in pre-defined zones.

These vehicle-based detections help raise the performance bar for Smatsensor HD. Sensor configuration is made even easier because configuration no longer affects detection, only the reporting of vehicles. SmartSensor HD’s vehicle-based detection even sees lane-changing vehicles that re often missed, or counted twice, by other radar sensors and other technologies.

SmartSensor HD is easy to install and includes a pointing assistant for precise alignment. Like all SmartSensors, SmartSensor HD’s patented auto-configuration process is quick and simple. HD Manager™ detects lanes by observing traffic flow, and immediately provides visual confirmation of a successful configuration. This unique auto-configuration and operation software has been developed especially for Pocket PC® handheld devices and laptops.

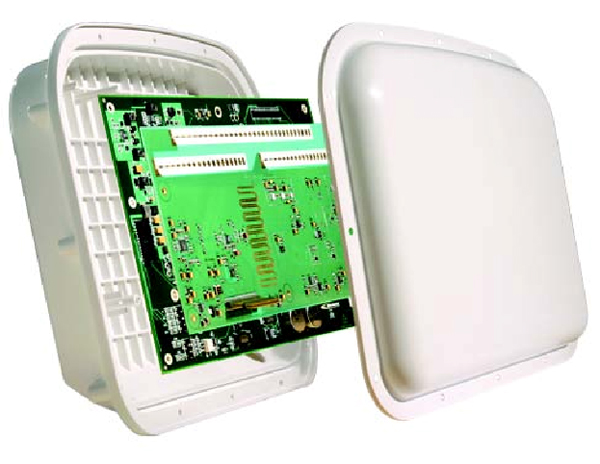

After installation, SmartSensor HD requires little or no on-site maintenance. Traffic data and configuration settings are stored in Flash memory, so the sensor can be remotely reconfigured for optimal performance. And SmartSensor HD is manufactured using a modern, automated process, with surface-mounted components and integrated antennas that provide consistent production and performance.


SmartSensor HD integrates seamlessly with existing legacy systems and is reverse compatible with the original SmartSensor. Dual communication ports enable SmartSensor HD to integrate with different systems simultaneously, and flexible connectivity options make it possible to directly retrofit SmartSensor HD into any existing radar deployment. This, combined with high definition radar and consistent accuracy, makes SmartSensor HD the most accurate, most cost effective traffic monitoring solution.

URL: www.wavetronix.com
